Flush mount enclosure

Special enclosure for flush mount, IP65 on the frontside.

Category:
General Details

This is an totally custom made enclosure woth special demands and short project time. The demands where; * IP65 class on the frontside with a relative open back wall for contacts and internal cables. * They looked at different coulors on the window, red, smoke and green. The end customer chose the green one since that gave the text on the display the best contrast. The project time where short from request to series shipment of 30 pls within 8 weeks.

DEVELOPED WITHIN THE CATEGORY:
ENCLOSURES

Flush-mount-enclosure
Images/Video
20140416_104658_www

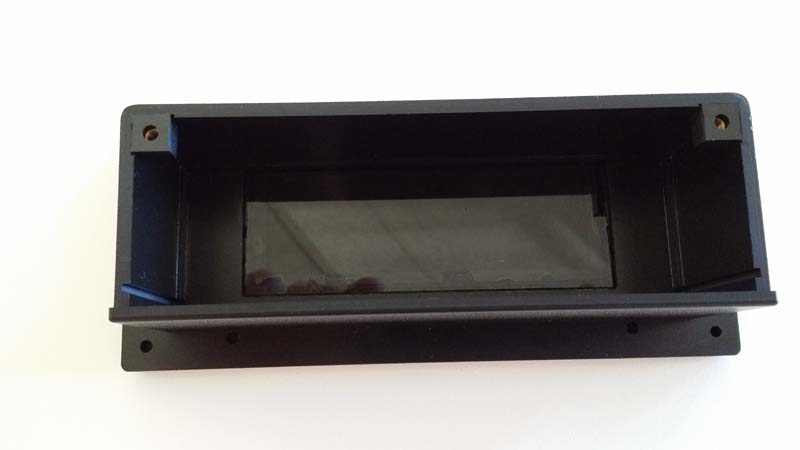

The board is pushed in from the back in the slots.

20140416_104513_www

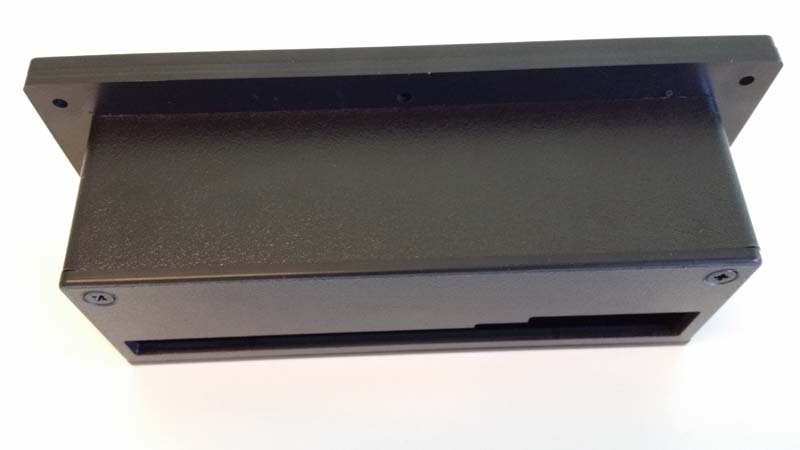

The front in double thickness for stability and possibility to make a recess for the window – that is glued. The thickness also gives a stability with the unit is screwed to the front. Here the back wall with opening for connectors.

639012__001_www

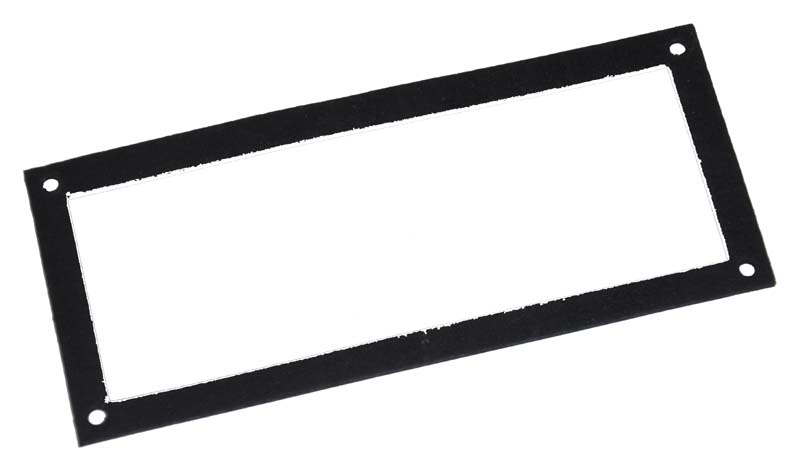

With the enclosure we also delivered a unique and specific gasket.

639012__003_www
